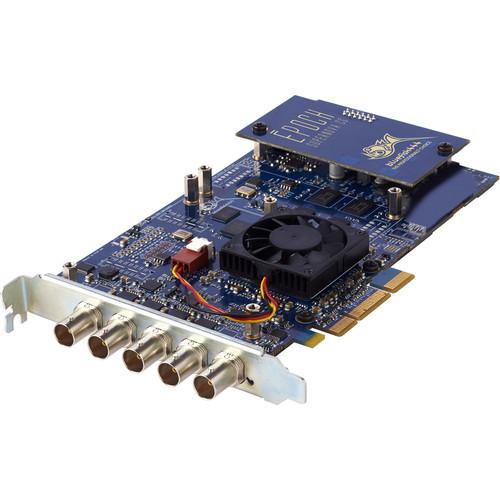

User Manual for BlueFish444 Epoch | Supernova CG Full License Click to enlarge the picture
Contents of the user manual for the BlueFish444 Epoch | Supernova CG Full
- Product category: Computer Hardware BlueFish444
- Brand: BlueFish444
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BlueFish444 Computer Hardware
|
User manual for the BlueFish444 Epoch | Supernova CG Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BlueFish444 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BlueFish444 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BlueFish444 product will considerably shorten its lifespan!
|
Product description - The Bluefish444 Advantage
The Epoch | Supernova CG Full License from Bluefish444 is been designed to meet the needs of third party developers and integrators who demand a 24/7 video card for live SDI 4:2:2:4 input and output solutions.
It has a low latency hardware video keyer allowing video layers to be combined in hardware with microseconds of delay. This feature allows animated logo’s, captions, ticker tapes to be keyed over live video feeds at full 12-bit precision and with minimum input to output delay. The hardware keyer can also function as an image pre-multiplier to assist in previewing images with alpha data. The Epoch Supernova CG card maintains the flexibility of the Epoch 4k Supernova S+ solution where SDI connectors can be set as inputs or outputs. In the Box BlueFish444 Epoch | Supernova CG Full License Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BlueFish444 Epoch | Supernova CG Full License in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlueFish444 EB3005CGF Specs | SDI Video Input | SD, HD 1.5G, 3G | | Genlock | Bi-Level/Tri-Level Genlock | | HANC | RP188 timecode
16-channels of embedded audio per SDI
Video payload ID | | VANC | Closed captioning
3 line VITC
Custom packets | | Audio Signals | 16-channels of embedded audio input per SDI
16-channels of embedded audio output per SDI
Dolby digital pass-through SDI | | Hardware | High Performance Bypass Relays
Fully Programmable 4 x 4 x 32-bit color matrix
12-bit video signal path throughout
Automatic Cross-Locking and intelligent output phasing across formats
(MR2) Master Routing Resource
ISIM (Input Stream integrity management)
4-lane PCI-Express (8 and 16 lane compatible)
256 MB On-board memory | | Supported YUV SDI Video Modes | 720 x 486i @ 29.97 fps NTSC
720 x 576i @ 25 fps PAL
1280 x 720p @ 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i @ 25, 29.97, 30 fps
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps | | Supported Pixel Formats | 2VUY, YUVS (BV8), V210, AYUV_4224, AYUV_4444, YV12, I420
ARGB, BGRA, RGB24, Cineon, DPX, RGB48, RGBA64
Custom using flexible hardware pixel format engine | | Supported APIs | Windows API C/C++
DirectShow Filters API
Mac OS X API C/C++
Linux API C/C++
Linux V4L2 | | | | Package Weight | 0.835 lb | | Box Dimensions (LxWxH) | 9.3 x 5.5 x 2.5" |
